Lesson 35 - Routing Information Protocol Part1

Now, that you have learned the principles regarding Distance Vector algorithm, it's time to look at the operation of the oldest distance vector routing protocol: RIP.

Routing Information Protocol is seldom used these days. It has been superseded by more sophisticated protocols (OSPF, EIGRP, IS-IS). However, Cisco still keeps it in the curriculum. All professionals up to the CCIE level (as of writing this post) need to know how it works. In order to enable RIP you must choose which version you want to run. By default, if you configure RIP the version used is version 1. You can change it to version 2 which is more preferred if one want to RIP to begin with. The below table summarizes the main feature of both versions.

Table 1- RIPv1 and RIPv2 Features.

Classful, Classless, and Summarization
Routers share their information (routing table) with their neighbors using advertisements. It is important to know that the shorter the routing table is, the less time a router needs to process the incoming packets in order to find the outbound (egress) interface and expedite them.

If your network design uses proper, consecutive IP scheme, a router can advertise fewer prefixes (routing entries) to their neighbors represented by so called summary routes. A summary route represents multiple more specific destinations. But the router which receives this summary route can still send packets towards the subnets that are being summarized. Consider the following picture (pic. 1).

Pic. 1 – Route Summarization.

Icons designed by: Andrzej Szoblik -

In the pic. 1, there are four subnets located behind R1. Router R1 can advertise them ‘as they are’ towards R2. This way, R2 will populate its routing table with all four of them (,,, with R1 as the gateway to these subnets. However, the subnet addresses behind R1 are designed to be represented by one summary route. This route is going to represent exactly these four subnets. So R1, instead of advertising the four of them, will announce only one address:

So the question is: how to summarize subnets/networks?

Assuming that IP addresses subnets/networks to be summarized are consecutive numbers when converted to binary, the rule to create the summary route presented in the pic.1 can be applied using three steps.

Step 1
Convert all consecutive summary candidates into binary. List them from the lowest number to the highest like presented in pic.1. = 00001010.00000001.00000000.00000000 = 00001010.00000001.00000001.00000000 = 00001010.00000001.00000010.00000000 = 00001010.00000001.00000011.00000000

Step 2
Find the number of bits that is identical and draw the line to see how many bits do not change. = 00001010.00000001.00000000.00000000 = 00001010.00000001.00000001.00000000 = 00001010.00000001.00000010.00000000 = 00001010.00000001.00000011.00000000

22 bits do not change = the length of the network mask representing all four entries.

Step 3
Advertise the address with the lowest number in the range using network mask length achieved in the step 2 (bits that never change give you the length of the network mask). The actual commands will be different depending which protocols you use. I will explain them in due time. = 00001010.00000001.00000000.00000000
Netmask     = 11111111.11111111.11111100.00000000 =

Optionally, you can check if the summary route covers exactly the prefixes. Notice that the two of the bits that change in the third octet will tell you how many addresses have been represented by the summary route (aka aggregate). Look at the bits that do change (in red). = 00001010.00000001.00000000.00000000 = 00001010.00000001.00000001.00000000 = 00001010.00000001.00000010.00000000 = 00001010.00000001.00000011.00000000

There are two bits that change in this range in the third byte. This number of bits with the exponent of 2, tells you how many subnets/networks are being summarized. Here: 2 to the power of 2 = 4. Exactly, four subnets have been summarized using prefix So this prefix represents exactly the subnets in question.

Now, that you know how to summarize consecutive subnets/networks, let’s see what automatic summarization to the class boundary will look like if you use RIPv1 and have different classes of IP addresses in your desing. Consider the picture presented below (pic. 2).

Pic. 2 – RIPv1 Automatic Summarization to the Class Boundary.

Icons designed by: Andrzej Szoblik -

The routers R1 and R3 are boundary routers between two different classes. They will advertise class A address ( since RIPv1 does it by default if the outbound interface (the one to send the advertisement) belongs to different class than the subnet being advertised. This will inevitably create confusion as far as R2 is concerned. It will think that both R1 and R3 are gateways to the same class A network As a result of that, the packets destined to the subnets and will not be delivered properly.

In RIPv2 you can disable this automatic summarization by using ‘no auto-summary’ keyword in the ‘config-router’ configuration context. This option makes RIPv2 classless routing protocol (it can advertise subnets of major classes). Classless routing protocols can advertise full prefix (IP address and the network mask) without summarizing it to the class like shown in the pic. 2.

RIPv1 Configuration
In order to configure RIP in our design, we need to perform two steps.

Step 1
Enable RIPv1 protocol process in the global configuration context.

Step 2
Using ‘network’ statement in ‘config-router’ context, instruct the router which interfaces should participate in the RIP process. RIP will run on these interfaces. In RIP protocol the ‘network’ statement has to be followed by the Class A, B, or C address which instructs the router which interfaces should be RIP-enabled.

The ‘network’ statement is one of the most misinterpreted keywords in Cisco IOS. RIP, OSPF, EIGRP use the ‘network’ statement to inform the router which interfaces should be enabled for the routing protocol. The ‘network’ statement does NOT advertise anything. Only when BGP protocol is used, the ‘network’ statement actually advertises the prefixes since BGP is an application using TCP (port 179) and is not run on the interfaces like all IGP protocols are.

Having said that, let’s enable RIPv1 in my design (pic. 3).

Pic. 3 – Topology Diagram.

Icons designed by: Andrzej Szoblik -

R1 Configuration:
R1#configurer terminal
R1(config)#router rip

R2 Configuration:
R2#configurer terminal
R2(config)#router rip

R3 Configuration:
R3#configurer terminal
R3(config)#router rip

R4 Configuration:
R4#configurer terminal
R4(config)#router rip

R5 Configuration:
R5#configurer terminal
R5(config)#router rip

I suggest that you analyze the topology, configuration and information in this post. There will be few issues we will come across here using RIPv1 (one of them I have not discussed yet but it will rear its ugly head on R3).

I will explain these problems in my next post. I will also show you how to check the configuration of RIP ('show' and 'debug' commands). Also, I will enable RIPv2 to show you the differences in their operation, and how to optimize and verify its operation.

Since, today is New Year's Eve, let me wish everyone:

Happy and Prosperous New Year 2011.
God bless you!

Wednesday, December 22, 2010

Lesson 34 - Dynamic Routing Protocols Introduction

If you have read the previous post, you must have noticed that using a static routing method tends to be a bit cumbersome in larger implementations. Using one of the dynamic routing protocols feels like an easier solution in these scenarios.

In this post I will briefly explain the general concepts behind dynamic routing protocols. Then, we can jump to implementation fundamentals.

One way of classifying dynamic routing protocols is based on where they are used. This criterion allows us to distinguish between two major solutions:
  1. Interior Gateway Protocols  (IGP)
  2. Exterior Gateway Protocols (EGP)
Common Interior Gateway Protocols are:
  • Routing Information Protocol (RIP),
  • Open Shortest Path First (OSPF),
  • Enhanced Interior Gateway Protocol (EIGRP, Cisco proprietary protocol),
  • Intermediate System to Intermediate System (IS-IS).
Exterior Gateway Protocols (currently there is only one in use)
  • Border Gateway Protocol  (BGP)
IGPs are designed to work in private networks. EGPs are used to provide paths in the public network (Internet).

We can also classify routing protocols based on the algorithm they use to distribute and maintain information (routing table). There are three major algorithms supported by Cisco routers:
  1. Distance Vector (DV, aka Bellman-Ford) – example of protocol: RIP.
  2. Link-State – example of protocols: OSPF, IS-IS.
  3. Advanced Distance Vector – protocols: EIGRP (also BGP is partly distance vector protocol).
Understanding the algorithms helps us determine the proper solution for a given design. There is no one best routing protocol out there, but there could be the best one in a specific design.

In this post I am going to focus in on the first algorithm listed above.

Distance Vector Algorithm Characteristics
This method is sometimes referred to as ‘routing by rumor’. The main characteristics of this approach are:
  • Routers do not know the topology of the network. They only know which is the outbound interface and the next-hop router’s IP address (vector) as well as the metric value which describes how far the destination is (distance).
  • Routers advertise their full routing table periodically. This method of route distribution creates two problems: routing loops and counting to infinity. Special techniques were created to solve these issues (details later in the post).
  • Routers perform automatic summarization if they are connected to different classful (A, B, C) networks.
  • No VLSM support. All network masks must be identical if the subnets of a major class are used in the network (RIPv1). RIPv2 is classless (VLSM supported using ‘no auto-summary’ command).
  • Routers are slow to converge. It takes a lot of time to invalidate lost routes and pick the new path if one is available as well as to synchronize their routing information.
  • Routers use simple metric. The metric number tells a router how many routers the packet has to traverse in order to reach the destination. In modern networks bandwidth of the path is much more important than how many hops will be used.
The above characteristics do not encourage us to use this kind of solution in our modern networks. But knowing the DV rules help us appreciate protocols such as OSPF or EIGRP which are more likely to be used in our designs.

Let’s see how things work when DV algorithm is used. As an example, I will use RIP protocol hoping to explain the principles of operation and how the two design issues have been solved (routing loop and counting to infinity).

Distance Vector Principles of Operation
Consider this simple topology. Without getting into configuration (syntax) details let’s have a quick discussion on how information is distributed using DV algorithm. Initially, the routers recognize only connected subnets. They are populated in the routing table as soon as IP addresses and network masks are configured and they are activated (no shutdown).

Pic. 1 - Connected Subnets.

Icons designed by: Andrzej Szoblik -

Let’s assume that we have enabled RIPv2 protocol in the topology presented above (pic. 1). This version of RIP allows the routers to announce both the subnet IP addresses and the network masks (we’ll put it into practice in the next post).

The RIP process must be activated in the ‘config’ mode. Then we need to instruct it which interfaces should be activated in the RIP domain. This is configured in the ‘config-router’ mode (‘network’ statement).  The routers begin to ‘chat’ and advertise their routing tables every 30 seconds.

Pretend that R1’s timer of sending the advertisement has just kicked in (pic. 2). R1 is advertising its routing table out of the RIP-enabled interfaces (in my example all interfaces of all routers are in the RIP domain). This way, R2 learns about subnet. So from R2’s perspective, R1 router becomes the gateway towards

Now, a word about the metric being advertised.

Metric used in DV reflects how many routers the packet has to traverse to reach the destination network/subnet (so called 'hop-count'). R1’s routing table’s entries (subnets: and show the metric of ‘0’ hops (pic. 1) since they are directly connected to F0/0 and F0/1 interfaces respectively (they are local to R1). While advertising them to the neighbors (pic. 2), R1 adds 1 hop (itself) to the existing metric found in the routing table.

Bear in mind, that algorithm prompts the router to send the full routing table. Current implementation changes that behavior (split-horizon) but more on this later in the post.

Pic. 2 – R1’s RIP advertisements.

Icons designed by: Andrzej Szoblik -

R2 accepts the advertisement about It puts this information in the RIP’s database and then it creates the entry in the routing table (purple color). Pay a close attention to what has just happened (pic. 2). The update arrives on R2’s F0/0 interface (RIP-enabled), sourced by the IP address of This way, R2 considers its F0/0 the egress (outbound) interface towards the subnet advertised by R1. The IP address of the sender ( becomes the next-hop IP address towards the subnet

Next, let’s imagine R2’s timer has expired and it is sending its routing table out F0/0 and F0/1. Please take a closer look at the picture 3 which shows this process in the graphical form. Just like previously R1 router has done, R2 is sending its routing table adding itself as an additional hop added to the existing metric (existing metric +1).

Pic. 3 – R2’s RIP advertisement.

Icons designed by: Andrzej Szoblik -

Now, R1 and R3 accept the advertisement from R2 and register the information sent in their RIP databases (the interfaces process the update as they RIP-enabled). Appropriate entries in the routing tables also show the egress interfaces and the metric expressed in the number of ‘hops’ (how many routers the packet will have to traverse to reach the destination subnet). Also, the IP address of the gateway (the sender IP address) is registered. Again, take a look at pic.3 which shows the new entries (in purple).

Now is the time for R3 to send its own advertisement. Using the same logic you should be able to tell what is going to happen. Take a look at pic. 4 to see what is going to be advertised and what is going to be learned.

The advertisement sent out R3’s F0/0 interface is useless in our topology because there is no other router listening to it. In my next post, I will show you how to prevent a router from doing it. Advertisement sent out F0/1 interface contains information about R3’s directly connected subnet Since the existing metric in R3’s routing table for this subnet is ‘0’ (directly connected to F0/0), R3 will add itself as the hop and advertise it with the metric of ‘1’ (existing metric + 1). R2 is going to learn it on its F0/1 interface which becomes the outbound interface to reach the subnet It is the interface to reach the advertising router’s IP address after all.

Pic. 4 – R3’s RIP Advertisement.

Icons designed by: Andrzej Szoblik -

Picture 4 shows this process.

This whole process of advertising the routing table out of all RIP-enabled interfaces occurs every 30 seconds but in fact, there is a jitter time introduced so this may vary between 25-30 seconds. When R2 advertising timer expires, it will pass the information contained in the its routing table on to R1. By doing this, R1 learns about all subnets R2 can reach, including now (pic. 5).

Pic. 5 – R2’s RIP Advertisement.

Icons designed by: Andrzej Szoblik -

The process of spreading the information explained using this method is referred to as the ‘routing by rumor’. The state in which all routers have stable information about all networks/subnets that can be reached is called the ‘convergence’. Do not confuse it with ‘convergent networks’ which allow all sort of packet transmissions (voice, video, and data).

Take a look at picture 6. It shows that all routers can reach all the subnets available in the RIP domain. Convergence has been accomplished since their routing table are synchronized and up-to-date.

Pic. 6 – Convergence Achieved.

Icons designed by: Andrzej Szoblik -

The method of distributing information presented is prone to introduce two problems:
  • Routing Loops
  • Counting to Infinity
Of course, they have been resolved by using different techniques which I am going to explain later in the post.

Let’s take a look at the downside of using distance vector algorithm.

Routing Loops
In the picture 7, R1’s F0/0 interface. As soon as the IOS detects this fact, the entry in the routing table about is immediately flushed (removed from the routing table completely).

Pic. 7 – R1’s F0/0 Interface Goes Down.

Icons designed by: Andrzej Szoblik -

As per the DV algorithm R1 would still wait till its advertisement timer expires. So instead of sending this ‘update’ immediately after it has lost the subnet, it will wait till its timer says: ‘now you can advertise your routing table’. This behavior might create a loop between R1 and R2 as far as the subnet is concerned. Consider this situation depicted below.

Pic 8 – R2’s Advertising Timer Expires.

Icons designed by: Andrzej Szoblik -

R2 is advertising its full routing table out of all RIP-enabled interfaces. In this announcement, there is subnet. The metric being advertised is: ‘2’ (the existing metric on R2 + 1). By now, you already know that the advertising router is going to add itself as the hop to the metric of the subnet/network it advertises.

Here is the issue. R1 is receiving 10.1.1/0/24 with the metric of 2 hops, the egress interface (the one the ad came on) is F0/1, and the next-hop-address is Look at the pic. 8 and tell me (I can’t hear you though), what would you do if you were R1? Obviously, you would reject this information because by looking at the topology diagram, you already know that is inaccessible (down) now, and the only way to reach it is through R1, right?

But the problem is, that routers using DV algorithm do NOT know the topology like explained in the characteristics section. In fact, R1 IS going to accept the information and treat R2 as the gateway towards !!!

Wow! As ridiculous as it sounds, it is exactly what would happen according to the rules set by the designers of this algorithm. So R1’s routing table is going to look like shown in the picture 8. Take a look at it now again!

We have a loop between R1 and R2 regarding If R2 receives the packets destined to subnet, according to its knowledge (current routing table), it is going to send it out F0/0 interface towards R1. This one in turn, will use its F0/1 interface for the destination, sending it back to R2. The packets will be looped until their TTL values are decremented reaching the value of TTL=0. Then, a router must drop the packet.

Counting To Infinity
A routing loop is not going to be the only problem here. R1 is going to accept advertisements from R2 regarding with the number of hops equal '2’. When R1 advertises its own routing table, it is going to add itself (as the hop) to the metric that already exists in the routing table. Look what is going to happen (pic. 9)

Pic. 9 – R1’s RIP Advertisement.

Icons designed by: Andrzej Szoblik -

Initially, R2 is going to ignore the information about from R1 containing the metric of ‘3’ hops since it has much better entry in the routing table (lower metric). However, it was R1 that initially sent the metric of ‘1’ hop. Now, the same R1 router keeps sending the metric of ‘3’ hops. The previous metric of ‘1’ is no longer refreshed. Since it uses the aging timer of 180 seconds (how long the information is valid), it finally accepts the entry with the metric of ‘3’ hops instead.

Then R2 begins to advertise the metric of 4 regarding subnet out F0/0 and F0/1. You can predict what is going to happen. Remember, that entries must be refreshed every 30 seconds. If they are not refreshed, the ‘Invalidation Timer’ (180 seconds), allows to accept the entry with worse metric than previously. Take a look at the sequence of events in the picture 10.

Pic. 10 – Larger and Larger Metric Propagation.

Icons designed by: Andrzej Szoblik -

It would last forever despite of the fact that is not reachable at all!

The Distance Vector algorithm uses a few techniques to prevent these two problems from happening. Here they are:

  • Triggered Update (aka flash update)
  • Route Poisoning
  • Maximum Metric (RIP considers 16 hops as inaccessible)
  • Poison Reverse
  • Hold-Down Timer
  • Split-Horizon
These methods deserve a few words of explanation.

Triggered Update
IOS uses this method to send the update immediately rather than wait for the advertisement timer to expire. However, there is no guarantee that some router in the chain is not going to send its own information before it receives this update. This might still lead to a situation where the two problems occur. So this method, as the only solution here, is not enough to make it work. Other methods must be used as well in order to avoid routing loops and counting to infinity.

Route Poisoning
Upon losing subnet/network reachability, a router is sending a triggered update. This update is going to include the maximum metric value (RIP=16 hops) which is considered as ‘subnet/network inaccessible’ (cannot be reached).

Maximum Metric (RIP=16)
If a RIP router receives an update about a network/subnet with the metric of 16 hops it is considered as inaccessible. This way, the advertising router is excluded from the list of gateways for the subnet/network advertised with the maximum metric.

Poison Reverse
Once a router receives the advertisement including the maximum metric, if it does not have an alternate path towards the subnet/network lost, it is going to send the same subnet/network prefix with the maximum metric (RIP=16) informing the other routers about it. This will also be sent back to the sender of this information it does not have an alternate path (this might be seen as violation of split-horizon, but remember the metric is the maximum value). Poisoning the path back to the advertising router is the way of informing it that the receiver of this information has no alternate path available either.

Hold-Down Timer
Upon receiving information from a neighbor that a subnet/network is inaccessible, the receiving router is going to enable a hold-down timer for 180 seconds. During this time, the receiving router keeps sending packet to the destination being inaccessible for some time rather than withdrawing the entry from its routing table. Why?

In the past, the routers did not have that much power and the media were unreliable. Interfaces were prone to flaps more often than in today’s reliable networks. An ‘interface flap’ is the condition when it goes down and up subsequently in a very short space of time (1-2 seconds perhaps). Under such circumstances, a router would advertise network as inaccessible and then as accessible again. Since it takes some CPU power to withdraw the entry and put it back in, the designers preferred to wait a bit longer to be absolutely sure (180 seconds by default) that the entry was supposed to be removed from the routing table. In case of an interface flapping, not only would the packets still be delivered but the CPU would not waste its ‘precious’ cycles on removing and putting the entry back in the routing table.

This method prevents the loops from occurring in the scenario we have talked about. This technique prevents a router from sending information it learned back out the interface it was received on. Consider our first example. R2 sent information about before R1 had had a chance to send the maximum metric towards R2 (subnet down). Split-Horizon prevents R2 from sending information about it learned on its F0/0 interface back out the same interface. As a result of that, R1 is never going to receive information it sent towards R2 ( and believe R2 could be the gateway to Thus, there is no loop

In my next post I’m going to show you how to enable RIP and how all these techniques work in practice.

Sunday, December 12, 2010

Lesson 33 - Static Routing

In the previous post I attempted to explain how a router selects the best route if there are multiple paths available. In this lesson, I'm going to show you how you can use static routes effectively in two different topologies (the second one uses backup links). You'll see how basic knowledge on route selection can come in handy if you plan on using primary and backup connections.

All Cisco routers have the routing capability turned ON by default. The command responsible for this is:

router(config)#ip routing

This allows a router to create and use the routing table the moment we enable and configure at least two interfaces.

Some subnets and networks are simulated by means of creating and configuring virtual interfaces (Loopback) in my topology.

Pic. 1 - Routing Topology 1

Icons designed by: Andrzej Szoblik -

Directly Connected Networks
In the topology used (pic. 1), the routers have been assigned IP addresses and the interfaces are up. Since the routing process is enabled (ip routing) the directly connected subnets/networks show in the routing table immediately. Look at R1's routing table:

Pic. 2 - Directly Connected Networks.

The problem is with the destinations that are NOT connected directly to a router (remote). A router does not know anything about these by default. There are two ways of "teaching" a router about remote networks or subnets:
  1. Applying static routing (manual method)
  2. Applying dynamic routing (a routing protocol that distributes information automatically)
Static Routing
There are pros and cons of using manual method. In complex scenarios (with redundant connections), more often than not, we use dynamic routing protocols. But there are situations in which static routing is good or perhaps the best solution.

Consider our example. R4 and R5 are connected to so called stub networks. A stub network has only one way in and out (one path). Some routers used in such designs are relatively cheap and may not even have enough hardware resources to run a dynamic routing protocol (such as OSPF or EIGRP). Then, installing static routes is the only option possible. Also, imagine your broadband router (your home network is also the stub-like if you're connected to one ISP). This router does not have the paths to each and every destination on the Internet. It uses a form of static route instead known as: default route. More on the default route later in the post.

Let's look at the syntax which allows us to instruct a router about remote networks and subnets manually.

Pic. 3 - Static Route Command Version 1.
Let's read what this command does.
"IP route towards class C network can be reached by sending packets to a next-hop router out the serial0/2 interface."

The last parameter used shows the router which interface should be used to send the packets out. If you configure the outbound interface instead of the IP address of the next-hop router in the path, this connection must be point-to-point (not multiaccess).

In case, the router's egress (outbound) interface is multiaccess link (Ethernet, Frame-Relay, ATM etc.), we must NEVER use local interface but IP address of the next-hop router instead. If you do not follow this recommendation, the router will try to resolve the layer 3 to layer 2 address for every destination out that interface. This leads to serious inefficiency and shows little understanding of routing operation of a person who used it.

If the router must send the packet to the next router in order to get to the destination (egress interface is multiaccess), the 'ip route' command should look like the example below (pic. 4).

Pic. 4 - Static Route Command Version 2.
Let's configure our routers so they can reach all networks int the topology used (pic. 1).

The routing works in both directions. This means that the router receiving packet to its directly connected network/subnet must know the returning path to the sender of the packet (source).

Configuration on R1

Step 1
Reachability towards The next-hop router is R2. The outbound interface is multiaccess link (F1/0). The order of statements does not matter. Configuring the remaining routers I will use a more logical approach than on R1.

R1#configure terminal
R1(config)#ip route

Step 2
Reachability towards and The same egress interface (F1/0).

R1(config)#ip route
R1(config)#ip route

Step 3
Reachability towards The egress interface is point-to-point (S0/2 running HDLC protocol). I can use either the next-hop IP address or the local interface s0/2.

R1(config)#ip route s0/2

Step 4
In order to reach Branch2 network, R1 must use R2 as the gateway. Even though R2 does not know how to get there now, I will configure it and then configure R2 to reach all networks and subnets (including

R1(config)#ip route

Step 5
Reachability to the point-to-point subnet between R2 and R5 (

R1(config)#ip route

Now, let's see what the routing table reveals:

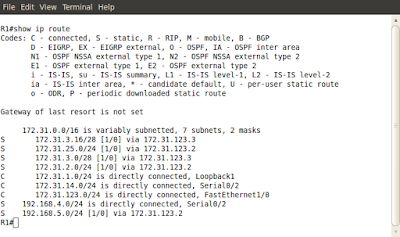

Pic. 5 - Routing Table of R1.

Before I proceed with the configuration of the other routers let's consider a few things.

Look at the R1's routing table and the topology carefully, and try to answer the following questions before you test the reachability using 'ping'. If you have problems answering the questions 1, the remaining ones (2-4) should give you a few hints.

Question 1
How many IP addresses presented in the topology (pic. 1) will respond to ping from R1 after you have configured static routes so far (only R1 is configured with static routes; all other routers have IP addresses and interfaces enabled)?

Question 2
R1 sends ping (echo request) towards What is going to be the source IP address of this request?

Question 3
R1 sends ping (echo request) towards Is R1 going to receive reply (echo reply)? Why?

Question 4
R1 sends ping (echo request) towards Is R1 going to receive reply (echo reply)? Why?

If you have answered them, check if you were right. The answers are as follows.

Answer 1
There are 11 IP addresses to respond to the ping sent by R1. These are:
  • - reason: directly connected subnet (Loopback 1).
  • through 3 - reason: directly connected subnet (F1/0).
  • and - reason: source IP address is the It's the egress interface to reach these two addresses (via F1/0). R3 knows how to get back to R1's F1/0 interface (R3's F1/0 is connected to too).
  • and - reason: R1 will use F1/0 (egress interface) to reach these IP addresses according to our 'ip route' statements. The source IP address is going to be the address of F1/0. R2 knows its way back to subnet (directly connected to F1/0).
  •, and - reason: R4 knows how to get back to the source IP address R1 uses for these destination. R1 uses as the source IP address. This source (subnet is shared between R1 and R4 on their Serial0/2 interfaces.
The reason I ask this question is to draw your attention to two important facts:
  • A router is going to find the best match in the routing table for each destination. If not found, of course the packet is dropped. If found though, a router will not change the source and destination addresses in packets TRAVERSING it. If the packet is ORIGINATED by the router (here: ping), the source of IP address used is going to be the address of its egress (outbound) interface by default.
  • Sending a packet out is one job, but the destination will try to send a response back to the source. The remote router which is going to respond, must know how to reach the source of the transmission as well (valid path back to the source in its routing table).
Answer 2
Ping from R1 towards is going to use as its source address since according to the routing table Serial0/2 is the outbound interface.

Destination shows the following detailed output on R1:

Pic. 6 - R1's Route Towards

The route shows that the longest match for is: This routing table entry points to Serial0/2 as an egress interface.

Answer 3
R1 sends the ping (echo request) packet towards Like explained in the answer 2, the source IP address for this echo request is going to be the address of the outbound interface (FastEthernet1/0). R2 knows how to reply back to since R2 is directly connected to the subnet with its FastEthernet1/0 interface.

Answer 4
R1 sends the ping (echo request) packet towards It is NOT going to get the reply from R5. The reason is that R5 does not know how to reply back to the source ( It has not been configured to reach remote subnets and networks yet.

I hope you have found this little quiz entertaining and informative enough.

Would you know how to configure R2 and R3 using R1's configuration as an example? Give it a try. If you can't do it yet, just follow the configuration presented below.

Configuration on R2

Step 1
Reachability to networks/subnets via R1.

R2#configure terminal
R2(config)#ip route
R2(config)#ip route
R2(config)#ip route

Step 2
Reachability to networks/subnets via R3.

R2(config)#ip route
R2(config)#ip route

Step 3
Reachability to network via R5.

R2(config)#ip route s0/2

Configuration on R3

Step 1
Reachability to networks/subnets via R1.

R3#configure terminal
R3(config)#ip route
R3(config)#ip route
R3(config)#ip route

Step 2
Reachability to networks/subnets via R2.

R3(config)#ip route
R3(config)#ip route
R3(config)#ip route

As for the routers R4 and R5 they connect stub networks. In order to simplify the configuration on these and reduce the number of entries on them, I am going to use a special type of static route called: the default route.

Pic. 7 - Default Route Example.

The destination IP address (unknown) represents all destination which cannot be found in the routing table. This address uses the network mask of all zeros ( As long as the router does not have the best match in the routing table for a given destination ('subnet not in table') the default route is going to be used instead. It is the 'gateway of last resort'. Like previously explained, on point-to-point links you can use the outbound interface instead of the address of the next-hop router.

Applying default routes is going to be easy.

Configuration on R4
Step 1
Packets for all unknown destinations send via R1.

R4(config)#ip route s0/2

Configuration on R5
Step 1
Packets for all unknown destinations send via R2.

R5(config)#ip route s0/2

Simple test will prove the default route operation:

Pic. 8 - Default Route Test.

Even though the routing table does not have the route towards, the packets are delivered using the default route (via R1 which knows how to get there).

Look what the routing table shows when default route has been added (pic. 9).

Pic. 9 - Routing Table with Default Route.

Static Routing with Primary and Backup Links
In order to spice things up, I am going to configure two additional connections from HQ to our branches using Frame-Relay. These redundant paths must be used as the backup links. They should be used in the case of losing main path via Serial0/2 interfaces (down).

Pic. 10 - Routing Topology with Redundant Paths.

Icons designed by: Andrzej Szoblik -

Please, disregard my configuration of Frame-Relay links for now. I'm going to address WAN protocols in the upcoming posts. I only need the extra connectivity to show you how to handle the primary and backup scenario using static routing.

Frame-Relay Configuration is going to look like this in order to reflect the topology in the pic. 10.

Circuit Between R1 and R5

R1 Configuration:
R1(config)#interface serial0/0
R1(config-if)#encapsulation frame-relay
R1(config-if)#no frame-relay inverse-arp
R1(config-if)#ip address
R1(config-if)#frame-relay map ip 105 broadcast
R1(config-if)#no shutdown

R5 Configuration:
R5(config)#interface serial0/0
R5(config-if)#encapsulation frame-relay
R5(config-if)#no frame-relay inverse-arp
R5(config-if)#ip address
R5(config-if)#frame-relay map ip 501 broadcast
R5(config-if)#no shutdown

Circuit Between R2 and R4

R2 Configuration:
R2(config)#interface serial0/0
R2(config-if)#encapsulation frame-relay
R2(config-if)#no frame-relay inverse-arp
R2(config-if)#ip address
R2(config-if)#frame-relay map ip 204 broadcast
R2(config-if)#no shutdown

R4 Configuration:
R4(config)#interface serial0/0
R4(config-if)#encapsulation frame-relay
R4(config-if)#no frame-relay inverse-arp
R4(config-if)#ip address
R4(config-if)#frame-relay map ip 402 broadcast
R4(config-if)#no shutdown

Now let's get back to the business. If I add two static route entries using the newly created paths, the metric of each of them is going to be identical with the metric used by the primary link (Serial0/2). This way, load balancing (traffic sharing) is going to be used since two equal cost paths exist. Our design stipulates that Frame-Relay circuits should be used as the backup links only (Serial0/2 down).

In order to accomplish this, I should change either the metric or administrative distance of the backup path. Unfortunately, we cannot change the metric (no command available) on static routes, but we can easily increase the value of administrative distance to make the backup path less preferred. The default AD for static routes is 1, so I will make the backup route less trusted by using the value of, say, 3.

Backup Link Between R1 and R5

R1 Configuration:
R1(config)#ip route 3

R5 Configuration:

R5(config)#ip route 3
Backup Link Between R2 and  R4

R2 Configuration:
R2(config)#ip route 3

R4 Configuration:
R4(config)#ip route 3

This way, the primary link (via Serial0/2) is preferred due to the lower administrative distance (AD=1). Look at R4 now:

Pic. 11 - R4's Routing Table with Primary Link UP.

In case the primary link goes down, the extra ip route (using Frame-Relay link) kicks in like shown in the pic. 12.

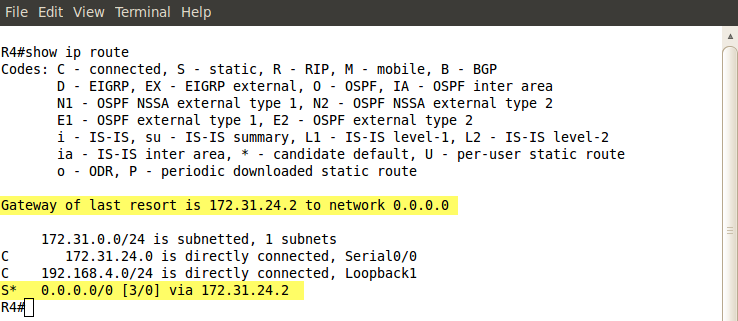

Pic. 12. - R4's Routing Table with Primary Link DOWN.

In the few upcoming posts, I will focus in on dynamic routing protocols.

Friday, December 3, 2010

Lesson 32 - Route Selection Process Demistified

It is imperative to know how a router selects the best path to some destination network/subnets if it has more than one to choose from. At least if you are serious about learning the routing principles. In this post I'm going to show you the algorithm a router uses to discriminate between multiple paths to the same destination.

A router can learn the routes to remote networks and subnets using manual instructions or by means of configuring routing protocols. This way routers learn how to reach destination networks/subnets dynamically. This post's primary focus is about Interior Gateway Protocols (IGPs) such as: RIP, OSPF, EIGRP. The only Exterior Gateway Protocol (EGP) we use nowadays is called BGP. It uses a bit more complex decision making process and is beyond the scope of this tutorial. In the future I am going to talk about it in more detail in the workbooks I plan to post in the future.

First things first. There are three terms I need to define in order to explain the process of selecting the best route. These are:
  1. The Longest Match Rule
  2. Administrative Distance
  3. Metric
The Longest Match Rule
In the previous post I showed you an example of routing table with a brief explanation about what each column in the output represented. Pic. 1 is the graphic equivalent of it.

When a router receives a packet, while processing the header, it is the DESTINATION IP address that is compared with the entries in the routing table in order to determine the next step. This next step is to find the egress (outbound) interface and the address of the next device to send the packet to. This form of routing is known as the destination-based routing. The process of comparing the destination IP with the prefixes int the routing table is done bit by bit (yes, routers see IP addresses in the binary notation). The entry that has the longest number of network bits that match the IP destination address is always the best match (best path). This is always the FIRST thing a router checks.

If there is ONLY ONE best match, a router has a simple task to do. It moves the packet to the outbound interface (egress) and encapsulates the packet in the layer 2 header according to the technology/protocol that is used on the outbound interface (Ethernet, PPP, HDCL, Frame-Relay etc.). Then, the frame is converted to bits and placed onto the wire/fiber optic cable.

If the outbound interface is a multi-access interface (such as Ethernet, Frame-Relay, ATM etc.), the router must know the layer 2 identifier of the next-hop device (layer 3 to layer 2 address resolution). For instance, in case the outbound interface is Ethernet, the MAC address of the next-hop device must be in the router's arp cache (if not found, the arp query is sent). In case, the egress interface is of a point-to-point type (subinterface point-to-point or protocol such as PPP, HDLC etc. is used), there is NO layer 3 to layer 2 resolution being performed. The packet is simply encapsulated in layer 2 frame sent out that interface.

Let's consider the example depicted in pic. 1.

Pic. 1 - The Longest Match Rule.

In this example the router receives an IP packet. The DESTINATION Address in the packet is The router is going to compare this address (bit by bit), with the prefixes (address/network-mask) in the routing table presented, trying to find the closest match (the number of bits that are the same). The entry that is the best match will give the router instructions as to what is the address of the next-hop device (here another router) and the outbound interface.

Let's play the router's game and compare all the entries with the DESTINATION IP address of the packet.

There are three candidate entries pointing to three different next-hop routers and three different outbound interfaces (pic. 1). The pic. 2 shows these numbers in the binary notation.

Pic. 2 - Destination IP Address Comparison.

Clearly, when converted into binary, the first entry shows the best match . The number of identical bits between the packet's destination address and router's knowledge about the subnet is 28 identical bits (highlighted in red). The second entry has only 24 identical bits, and the third one, only 16 bits match the destination IP address (class B network address). That is why the egress interface for the packet towards is FastEthernet0/0 (pic. 1).

So far, we have only dealt with the situation in which there is a SINGLE best match. What if there are more than one entries (paths available) in the routing table with the EXACT same longest match?

There are two other parameters a router uses to break the tie:
  1. Administrative Distance
  2. Metric
Administrative Distance
There are the situations that your router(s) may use more than one source of information. Not that you create such situation on purpose. You are better off using one protocol (e.g. OSPF), but reality bites and sometimes you have to support more than one routing protocol in the same routing domain. In such situations your router may receive the same prefix(es) from different sources. As a result of that multiple sources (RIP, OSPF, EIGRP etc.) provider the router with the EXACT same prefix (address/network-mask).

In order to deal with situations like this, Cisco have created a ranking which assign the protocols (sources of information) different levels of "trustworthiness" (if that's a word). This level of "believability" is expressed with the arbitrarily allocated value that is given to different sources of information. This parameter is called: Administrative Distance (or just 'distance'). The LOWER the value of AD is, the more trusted the source of information is going to be.

Consider the pic. 3. The router receives EXACT same prefix ( from two different sources: RIP and OSPF. Since this is going to cause an issue as to which one is better, AD is going to break the tie. OSPF is more trusted than RIP as it has lower value of Administrative Distance assigned to it (110) compared to RIP's (120).

There are many reasons why RIP is less trusted source than OSPF, but explaining it in detail is beyond of the scope of this post. Needless to say, if you do not like Cisco arbitrarily set values, there are ways of changing them. The commands are different for different protocols, and when we get to advanced topics (hopefully), I'm going to show them to you.

Pic. 3 - Advertisement Come from Different Sources (Protocols).

Icons designed by: Andrzej Szoblik -

I have included a few AD values for the most often used protocols to get you going. For more information on that go to Cisco web site. Of course the best way of finding the values is to use my favorite search engine: google ;).

Another situations that might put a router in a difficult position regarding which path is the best occurs when there are multiple longest match entries in the routing table, coming from the same source. Or more accurately speaking, there are multiple best matches (EXACT prefixes) having the same value of Administrative Distance (AD).

In such situations, the tie-breaker is going to be the LOWEST value of the METRIC.

A metric is the value calculated for each prefix and expresses, for the lack of better word, how far the destination is. The lower the value, the more preferred the path is.

Keep in mind, that the type of metric routing protocols use (the way they calculate it) is different between them and totally INCOMPATIBLE. They use different ways and factors to calculate their metric.

Just to give you a few examples, RIP uses the concept of hop-count. The number (metric) tells the router how many routers the packet must traverse before it reaches the destination.

OSPF on the other hand, uses the cost as its metric. It is calculated based on the bandwidth of the interfaces (links) in the path. This way, its metric is far more sophisticated and more suitable for our networks compared to RIP.

As you see it is not the coincidence that OSPF is more trusted source of information compared to RIP.

Consider the following example (pic. 4).

Pic. 4 - An Example of Metric Types.
Icons designed by: Andrzej Szoblik -

If in your design you decided to use RIP in the above topology, the router A, would choose the best path towards through router B. This is because the metric used by RIP takes into consideration the number of routers the packet has to traverse, and nothing else. The path through router B is better (1 hop), as opposed to the path through routers C, D, B (3 hops). RIP does not factor in the bandwidth of the links in the path.

If you chose to use OSPF instead, the number of hops (routers the packet is going to go through) is irrelevant. OSPF makes forwarding decisions based on the bandwidth available in the paths. This way, OSPF prefers path through routers C, D, B, rather than through router B (much faster links available).

More on the topic of metrics in the upcoming posts. Now, that you have learned about the factors that help routers determine the best path, you are ready to take a look at the algorithm.
  1. Prefer the path with the longest match entry in the routing table (irrespective of the metric or AD).
  2. In case there are multiple best matches available, check the AD value (if they come from the same source). Choose the source of information with the lowest AD.
  3. If the best match prefixes (more than one) come from the source with the same AD, choose the lowest metric number.
The same order of operation is presented in the pic. 5.

When considering Border Gateway Protocol, its metric is very complex (not a single number like all Interior Gateway Protocols tend to use). As a result of that, the rules of finding the best route are also more complex and are beyond the scope of this post.

Pic. 5 - Route Selection Process.

Traffic Sharing
One last scenario. What if a router receives more than one exact longest match prefixes that have the same values of AD and the metric?

All of them are the best candidates and the router performs load sharing (load balancing) using all of the egress interfaces that are the best. Of course, whether it is per-packet, or per flow load-balancing depends on the switching engine configuration of your router.

I hope you have caught the idea by now. Check yourself by answering the following question. You will find the answers for all scenarios presented at the bottom of this post.

Practical Question
The IP packet has the destination address of The third column on the left is the prefix learned. Which entry in the routing table (number in first column) is going to be the best in the following scenarios? Which outbound interface is going to be used?

Pic. 6 - Scenario 1.

 Pic. 7 - Scenario 2.

Pic. 8 - Scenario 3.
Pic. 9 - Scenario 4
Pic. 10 - Scenario 5

The answers to the question (all scenarios)
Scenario 1
Entry 2 is the correct answer. The egress interface is F0/0.
The router looks for the longest match in the routing table first. Entry 2 learned from RIP has the longest number of bits that are identical with the destination IP (it is the most specific). The remaining sources (OSPF and EIGRP) have fewer bits that match the destination address (they are less specific). The fact that they are more trusted does not apply here since the longest match is always preferred.

Scenario 2
Entry 1 is the correct answer. The egress interface is S0/1.
Just like in the scenario 1, the router looks for a longest match in the routing table first.
Entries 4 and 5 have 8 bits and 16 bits in common with the destination address respectively. Entries 2 and 3 have 24 bits in common. The longest match is the entry 1 having 28 networking bits that are identical with the IP address You can check it by converting the last byte into the binary notation.

Scenario 3
Entry 2 is the correct answer. The egress interface is F0/0.
We can safely rule out the Entries 1 and 4 due to the length of network mask (not the best matches). We're left with Entries 2 and 3. Both have the same number of bits that are identical bits with the destination address (24). Both prefixes come from the same source (OSPF) and as a result of that have the same Administrative Distance value = 120. The tie breaker is going to be the metric value. Entry 2 has a cost of 30 and entry 4 has cost of 40. The lowest is the preferred one.

Scenario 4
Entry 2 is the correct answer. The egress interface is S0/0.
All five entries have the same length of prefix mask, so after longest match rule check we have five candidates.  However, entries 4 and 5 come from OSPF and have higher AD (120) than the first three entries coming from EIGRP routing protocol (90). The lower AD here is preferred. We can rule 4 and 5 out now. Again, all three of them left, have the same AD (90). The tie-breaker is the value of metric again.

Scenario 5
Entries 1 through 3 are the correct answer. The egress interfaces are S0/0, S0/1, and S0/2. The router is going to perform load balancing (traffic sharing).
We can rule out entries 4 and 5 like in the scenario 4. The remaining entries 1 through 3 come from EIGRP (AD=90) and their metrics are the same.

Tuesday, November 30, 2010

Lesson 31 - What is a Router?

We take a lot of things for granted. When it comes to technologies it is not necessarily the best idea. The point is to understand. That is why I am going to start my routing section with fundamentals. Knowing them will allow you to learn more advanced topics on your own later. Make sure you are familiar with my previous posts related to binary numbers and IP addressing before you read this and upcoming ones.

Probably the most appropriate question to start with would be ...

What is a router?
A router is a specialized computer which can connect multiple networks to allow exchange of packets between them. Since a router uses IP header information (layer 3 protocol data unit), to transmit the packets between networks, this ability makes it a layer 3 device. Like switches, routers build a special database which serves as the source of information on what to do with incoming packets. This database is formally called Routing Information Base (RIB). But most often people call it a routing table. How a router constructs a routing table and maintains information in it, will be the topics of quite a few upcoming posts.

A router is in many ways similar to a regular PC. It has RAM and ROM memory chips as well as CPU and motherboard etc. But instead of using hard drive, it uses a flash memory to store files such as the operating system (IOS). Also, what makes it distinct, the operating system and hardware are optimized for fast packet transmissions. Typically the router uses at least two interfaces but more often than not, it has a greater number of them. Cisco operating system is called Internetwork Operating System (IOS). The same name is given to OS used by many Cisco Catalyst switches. Although some of them may also use CatOS.

There is a great variety of interfaces routers can use. For instance, they can connect few Ethernet networks together, but also Ethernet with Wide Area Networks (WANs) such as ATM, Frame-Relay, X.25, ISDN, Broadband etc.

Router Functions
In order for the routers to connect multiple layer 3 networks together, they must be able to do the following:
  • Learn which networks/subnets are available
  • In case there are multiple paths, choose the the best one
  • Keep (routing table) must be up-to-date
  • Translate layer 2 headers (disparate network connections)
  • Keep loop-free paths
  • Make forwarding decisions based on layer 3 headers
Routing is primarily based on hop-by-hop paradigm. This means that if there are multiple routers in the path, a router must find the outbound interface and forward the packet to a next hop router. A router could not care less as to what happens to the packet after it has been expedited.

In order to find the outgoing interface an IP destination address of a packet and a routing table are used. The process whereby destination IP address is the key information to find the outbound interface for a packet is called destination-based routing. However, it is possible to influence that decision making process and choose other criteria such as source of IP transmission, size of the packet, importance of the packet in relation to others or some other parameters rather than destination IP address. When used it is referred to as the traffic engineering. For now though, I am going to focus in on the default behavior.

Before I describe the router's principles of operation, I must make sure we are on the same page with the fundamentals related to the traffic flow.

Let's recall what happens with the packets sent between computers residing in different networks. I will use a simple topology (pic. 1) to review a few facts. Please, get familiar with the picture below first. Pay a special attention to the three headers depicted and numbers in green circles. The numbers refer to the steps below. Of course, this is only a ten thousand foot view of what happens here. Before we jump into the deep water we need to warm up a bit by looking at the process from a high perspective.

Pic. 1 - Traffic Flow and Layer 2/layer 3 Encapsulation/De-encapsulation
Icons designed by: Andrzej Szoblik -

The numbers in green circles mark the important points of the traffic sent from PC1 (left hand side) to the PC2 (on the right side of the picture).

In the explanation presented below I assume that SW1 and SW2 have populated their CAM tables (learned all MAC addresses on the appropriate ports). Here's how it goes.

PC1 sends a packet destined to PC2. Since, PC1 has the IP address, it realizes that the first 24 bits of the destination IP address are different than its own (source:, destination: Conclusion: PC2 is NOT in the same layer 3 network, so default gateway ( must be used to forward the packet to PC2. Knowing it, the IP header is going to use:
  • Src IP =
  • Dst IP =
  • TTL = 32 (ttl is set by the application, here I use 32 as an example)
IP packet is encapsulation in Ethernet (layer 2) header in order to be put onto the wire. Ethernet header contains source MAC address of the sender, and destination MAC address of R1's F1/0 interface obtained from the computer's arp cache (if not found in the arp cache, arp request is sent):
  • Src MAC: 0000.1111.1111
  • Dst MAC: 0000.2222.2222
Step 2
SW1 receives the frame on its port F0/1. It locates the outbound port (f0/2) for destination 0000.2222.2222. It sends the frame out towards F1/0 port of R1. Neither of layer 2 or layer 3 headers presented in the pic. 1 change during this transmission (parameters depicted).

Step 3
R1 receives frame on F1/0 port. Layer 2 header is inspected by R1. Since the destination MAC address (0000.2222.2222) is the address of F1/0, R1 concludes it is the destination for the frame. Layer 2 header is removed and the content of the message (packet) is processed by the router. R1 processes IP header, reads the destination IP address ( and compares it with the entries in its routing table trying to find the longest match. More on this in the upcoming post. Once the best path has been found, the routing table points to the outbound interface (F1/1) and the next-hop router's IP address ( that should be used to expedite the packet.

Step 4
The packet is moved to F1/1 port and the TTL number is decremented by 1 (now TTL=31). Then, the packet is encapsulated in the layer 2 header.The following source and destination MAC addresses are used now:
  • Scr MAC: 0000.3333.3333
  • Dst MAC: 0000.44444.4444
The destination MAC address is obtained from R1's arp cache. If R1 does not know the MAC address for (next-hop router), arp request is sent asking for its MAC address.

Step 5
R2 receives the frame on F1/0 port. It performs the same job R1 has done. It reads the destination MAC address. Since it is the recipient (0000.4444.4444), it dumps the layer 2 frame and processes IP header. It performs layer 3 lookup in its routing table and finds the outbound interface for destination In our example it turns out that the destination network is connected directly to F1/1 interface. In such case, R2 checks arp cache for MAC address of the destination ( if one is not found, arp request is sent (who's ?, I need you MAC address!).

Step 6
The packet is moved to F1/1 interface and before it gets encapsulated, the TTL number is decremented by 1 (TTL=30). The packet is encapsulated in an Ethernet frame header using the following addresses:
  • Src MAC: 0000.5555.55555
  • Dst MAC: 0000.6666.66666
The frame is sent out F1/1 interface.

Step 7
SW2 receives the frame and finds the outbound interface for the MAC address: 0000.6666.6666 int its MAC address table. It is port is F0/2.

Step 8
The frame is sent out F0/2 towards PC2. Fields in the layer 2 and layer 3’s headers remain the same.

The above is just a quick review in case you've forgotten that.

The interesting bit for us now is the router's process of finding the outgoing interface and layer 2 addresses of the next hop device. I'm going to elaborate on this in my next post. Now, let me quickly present the routing table components that are essential in this traffic flow.

Pic. 2 - Routing Table Components.
Components of Routing Table:

  • C and S - point how a router obtained the information (C = connected, S=static route)
  • - Example of prefix (destination network/subnet)
  • [1/0] - square brackets show two numbers. First (1) is Administrative Distance, second (0) is Metric
  • via 192.168.2. - the next-hop-router address
How router populates the routing table, what these terms in red mean and how router uses these parameters to pick the longest match and as a result of that the best path, are going to be the main topics of my next post.


CCNA Basics | Cisco Advanced | Linux Last Update: 19/02/2019 - eBGP Peering CCNA Lessons: 01 - Connecting to Cisco Cons...
